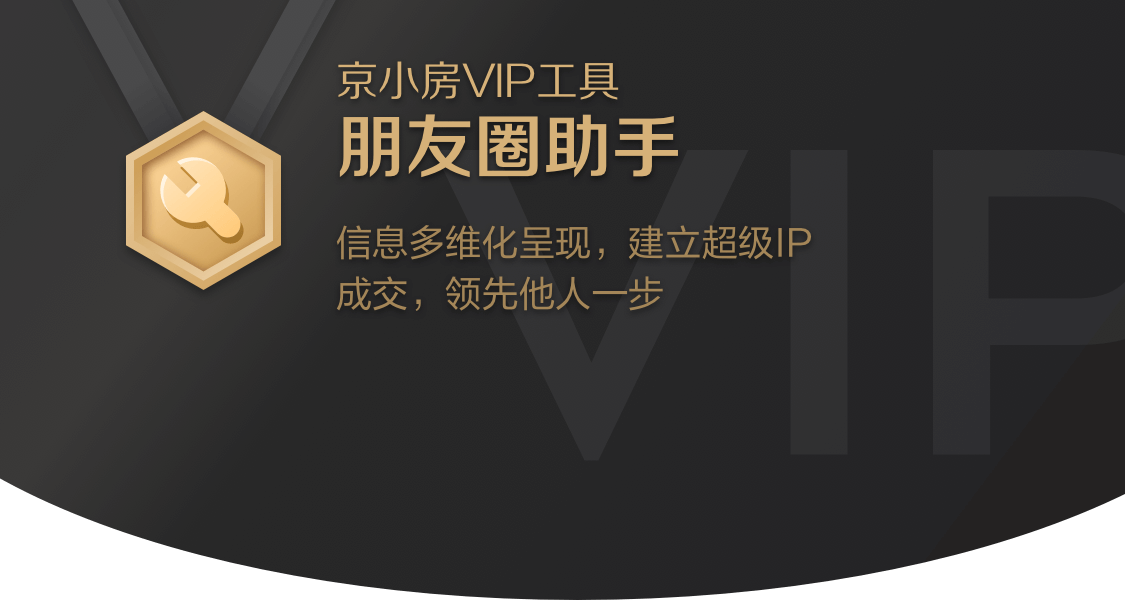

要实现顶部或底部有凹凸弧度的矩形或图片,实现的效果如下:
图片 1.png

第一步:需要定义生成顶部或底部有弧度的矩形的函数

  • 参数定义:topRadianHeight: 顶部弧度的高度,大于0为顶部凸,小于0为顶部凹;bottomRadianHeight:底部弧度高度,大于0为底部凸,小于0为底部凹
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16
    17
    18
    19
    20
    21
    22
    23
    24
    25
    26
    27
    28
    29
    30
    31
    32
    33
    34
    35
    36
    37
    38
    39
    40
    41
    42
    43
    44
    45
    46
    47
    /**
    * 画顶部或底部有弧度的矩形或图片需要用到的方法
    * @param params
    * @param topRadianHeight 顶部弧度,大于0为顶部凸,小于0为顶部凹
    * @param bottomRadianHeight 底部弧度,大于0为底部凸,小于0为底部凹
    * @param ctx
    */
    const toDrawArcRect = (params, ctx) => { // 画上下左右方向有弧度的矩形
    const {
    left, top, width, height,
    topRadianHeight, bottomRadianHeight
    } = params

    const halfWidth = width / 2
    const radianHeight = topRadianHeight || bottomRadianHeight || 0
    const r = (halfWidth * halfWidth + radianHeight * radianHeight) / (2 * Math.abs(radianHeight))
    const radiusX = left + halfWidth // 圆心X的坐标
    const radianValue = Math.acos(halfWidth / r) // 弧度
    ctx.beginPath()
    if (bottomRadianHeight) { // 底部凸
    if (bottomRadianHeight > 0) {
    ctx.arc(radiusX, top + height - r, r, radianValue, -radianValue + Math.PI)
    ctx.lineTo(left, top)
    ctx.lineTo(left + width, top)
    ctx.lineTo(left + width, top - radianHeight + height)
    } else { // 底部凹
    ctx.arc(radiusX, top + height + r + radianHeight, r, radianValue - Math.PI, -radianValue)
    ctx.lineTo(left + width, top)
    ctx.lineTo(left, top)
    ctx.lineTo(left, top + height)
    }
    return
    }
    if (topRadianHeight) {
    if (topRadianHeight > 0) { // 顶部凸
    ctx.arc(radiusX, top + r, r, radianValue - Math.PI, -radianValue)
    ctx.lineTo(left + width, top + height)
    ctx.lineTo(left, top + height)
    ctx.lineTo(left, top + radianHeight)
    } else { // 顶部凹
    ctx.arc(radiusX, top - r - topRadianHeight, r, radianValue, -radianValue + Math.PI)
    ctx.lineTo(left, top + height)
    ctx.lineTo(left + width, top + height)
    ctx.lineTo(left + width, top)
    }
    }
    }

第二步:绘制顶部或底部有凹凸弧度的线框、矩形或图片

  • 画线框
    1
    2
    toDrawArcRect(***)
    this.ctx.stroke()
  • 画矩形
    1
    2
    toDrawArcRect(***)
    this.ctx.fill()
  • 画图片
    1
    2
    3
    4
    5
    6
    7
    this.ctx.save()
    toDrawArcRect(***)
    ctx.strokeStyle = 'rgba(255,255,255,0)'
    ctx.stroke()
    this.ctx.clip()
    this.ctx.drawImage(***)
    this.ctx.restore()
    _注:原理是,clip() 方法会在原始画布上剪切任意形状和尺寸。一旦剪切了某个区域,则所有之后的绘图都会被限制在被剪切的区域内(不能访问画布上的其他区域)。可以在使用 clip() 方法前通过使用 save() 方法对当前画布区域进行保存,并在以后的任意时间通过 restore() 方法对其进行恢复。
